Description

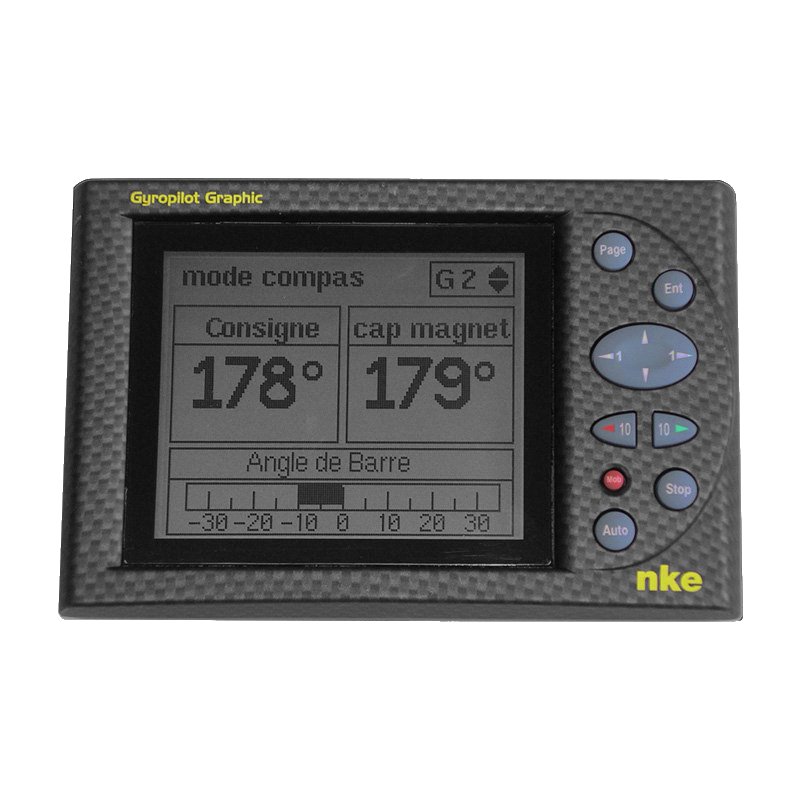

Gyropilot Graphic is a Multifunction display and the nke pilot’s control. Its graphic screen offers a wide range of display options:
•A detailed representation of the control parameters of Gyropilot 2.
•A configurable multifunction unit for on-screen display of 1, 2, 3 or 4 channels.
•A drop-down menu that clearly describes the settings and configurations, with 6 languages available (French, English, Italian, Spanish, German and Dutch).
Using the wired or wireless remote control, the user selects the channels to be displayed.
In pilot mode
•Choice display of the 5 pilot modes: helm, compass, apparent wind, true wind (optional), GPS.
•Displaying for each mode selected: display, setpoint, value monitored, helm angle, mode, value of set gain.
•control of the pilot using backlit keys
•Direct setting of the gain and set point by increments of 1° using the browser
•Direct access to settings and alarms
•Display of the data received on the NMEA input
•Settings saved according to the conditions
In navigation mode
•Simultaneous display of 1 to 4 data per page
•Display of a navigation page showing the essential functions: surface speed, depth, apparent wind speed, water and air temperature, apparent wind angle (analog)
•Display of the nke BUS or NMEA values in analog or digital mode
•Backup of preprogrammed pages
•Direct access to sensor calibration and alarm settings
•Energy management thanks to the display of heading maintenance and power consumption
Characteristics
•Power supply: 10 to 16VDC
•Power consumption: 30mA without lighting, 50mA with lighting.
•Tightness: IP67 – Weight: 740g, cable included
•Bus cable: Ø 5.8 ± 0.3; weight = 50 g/m.
•Dimensions: height = 118mm; width = 181mm; depth = 32.5mm
•Operating temperature: -10°C to +50°C
•Storage temperature: -20°C to +60°C
•Horizontal viewing angle: greater than 120°
•Vertical viewing angle: greater than 90°
2 colours available:
•Gyropilot Graphic white, ref.: 90-60-348
•Gyropilot Graphic carbon, ref.: 90-60-352
See also
•True wind and speed over ground option, ref.: 90-60-296
•Pilot’s wireless remote control, ref.: 90-60-258
————
