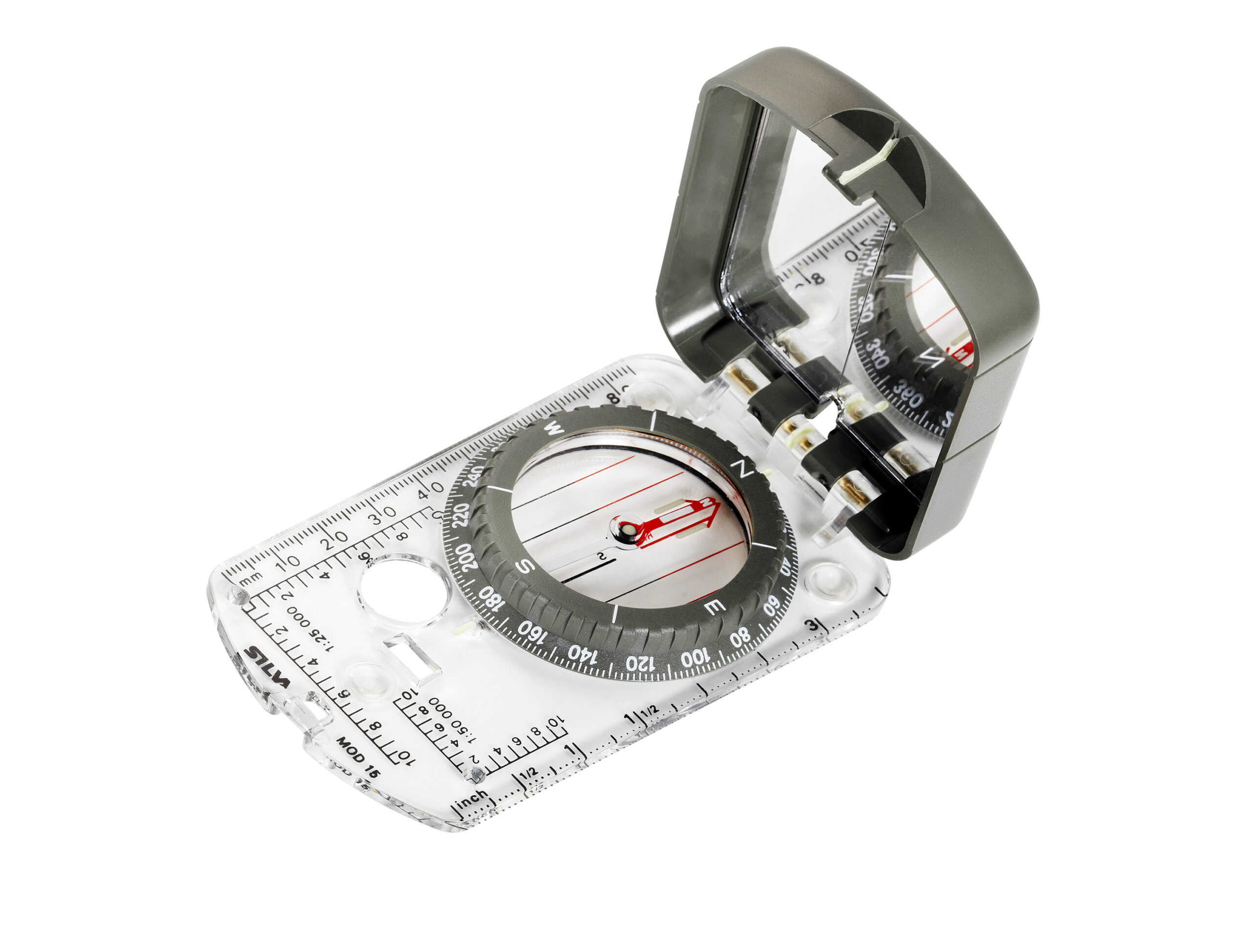

Kompass SILVA Expedition 15TDGL 6400 Green

Kompass SILVA Expedition 15TDGL 6400 Green on peegelsihikuga kompass mis on kasutusel peamiselt kaitsejõududes globaalselt

It has Romer scales with plotting holes for finding and marking GPS coordinates on the map and rubber feet so it won’t slide on the map. Luminous compound that need to be activated by daylight/flashlight etc.

Will give light up to 4 hours.

6400 mils on the graduation ring. Built in adjuster for magnetic declination and clinometer.
Accuracy›± 1° (17.8 mils)

Altitude use›5000m @-15 °C

Clinometer›Yes

Declination adjustment›Yes

Graduation›6400°

Illumination›4 hours after activation in light

Impact resistance›30g in XYZ directions and free fall from 1.5 m height into gravel

Magnifying lens›Yes

Material›Acrylic/Acetal

Patented red/black N/S lines in capsule›Yes

Resolution degrees / mils›2 / 50

Scales›mm, inch

Settling time from 90° angle to complete rest›5 sec

Settling time from 90° angle within ± 3°›2.7 sec

Sighting System›Mirror sighting

Silicon friction feet›Yes

Size›108 x 63 x 20 mm

Temperature operating range›-40 to +60 °C

Type of compass›Silva 1-2-3 System Mirror sighting compass

UTM position plotting scales (Romer scales)›1:25k, 1:50k

Water resistance›IP68 – (more than 100 m)

Weight›88g
